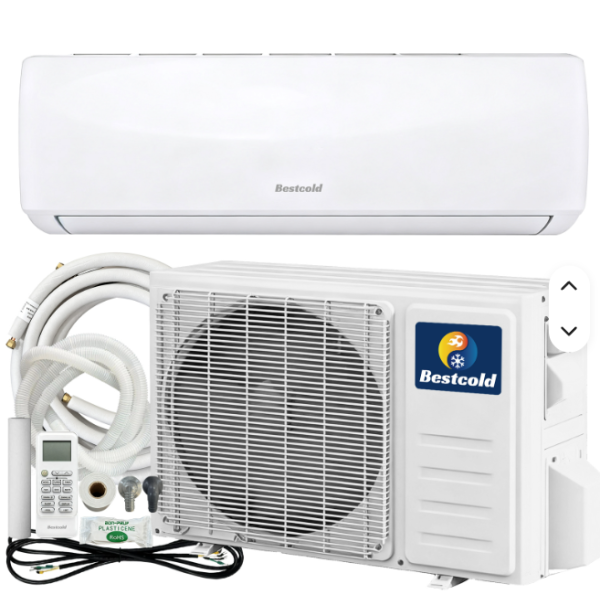

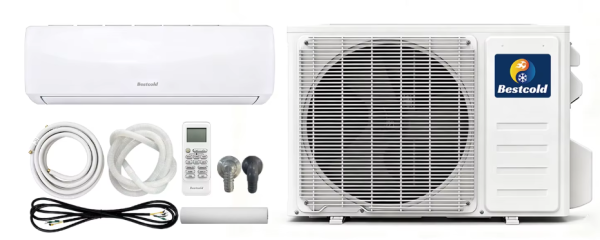

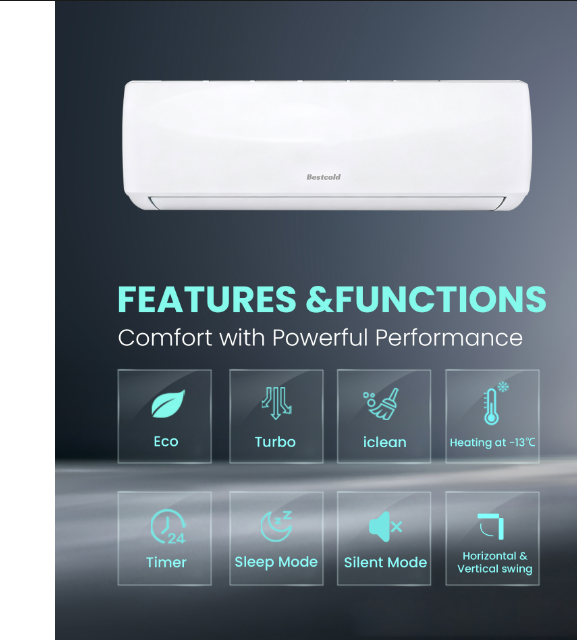

Bestcold 12000 BTU 110V Mini Split Air Conditioner Ductless Heat Pump Inverter AC With Dehumidifier for Humid US Environment
| Sales Model | MYTW-12HPAC1 | ||
| 11K-115V-HP | |||
| Type | cooling&heating | ||
| Control type | remote | ||
| Power supply | 115V~/60Hz/1P | ||
| Rated Cooling (95F/35C) |
Rated cooling capacity (95F/35C) | Btu/h | 11500 |
| EER2 (95F/35C) | Btu/W.h | 9.4 | |
| SEER2 | Btu/W.h | 17.5 | |
| Rated Heating | Rated Heating capacity(47F/8.3C) | Btu/h | 11500 |
| HSPF2 Rating (Region IV) | Btu/W.h | 8.5 | |
| HSPF2 Rating (Region V) | Btu/W.h | 7.2 | |
| COP2 (47F/8.3C) | W/W | 3..3 | |
| Max. Heating capcacity (5℉/-15℃) | W/W | 8100 | |
| 70% | |||
| COP2 (5℉/-15℃) | W/W | 1.9 | |
| Rated Input Consumption | Cooling | W | 1180 |
| Heating | W | 1005 | |
| Rated Current | Cooling | A | 10.38 |
| Heating | A | 8.78 | |
| NEEP, Canada | YES | ||
| Current Range | A | 2.0~13.0 | |
| Max. Current (T1) | A | 2.0~14.0 | |
| Min. Circuit Ampacity | A | 17 | |
| Max. Fuse size | A | 25 | |
| Moisture removal | Liters/h | 1.3 | |
| Maximum Operation Pressure | PSIG | 652 | |
| Indoor noise level at cooling | Turbo/High/Med./Low/Mute | 42.9/40/36.1/33/29 | |
| Outdoor noise level | dB(A) | 53 | |
| Connecting Pipe | Gas | inches | 3/8” |
| Liquid | inches | 1/4” | |
| Connecting Wiring | Size x Core number | 4×16AWG | |
| Suitable area | sq.ft | Up to 550 | |
| *** Indoor Unit *** | |||
| Speed-Cool-Turbo/Hi/Mid/Lo/Mute | rpm | 1350/1200/1000/900/750 | |
| Speed-Dry | rpm | 900 | |
| Speed-Heat-Turbo/Hi//Mid/Lo/Mute | rpm | 1350/1200/1050/950/850 | |
| Indoor air circulation-Turbo/Hi/Mid/Lo/Mute | m3/h | 470/450/410/380/350 | |
| CFM | 276/265/241/224/206 | ||

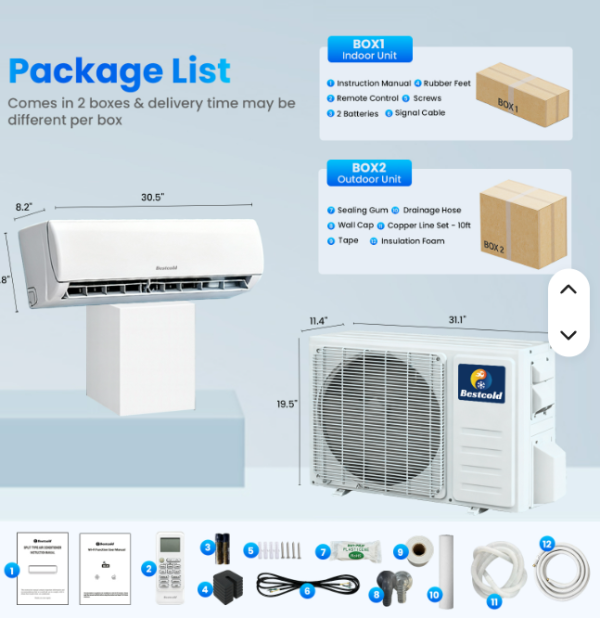

| Net dimensions (W x D x H) | Indoor | mm | 777×250×201 |
| inch | 30.59×9.84×7.91 | ||
| Outdoor | mm | 777×290×498 | |
| inch | 30.59×11.42×19.61 | ||
| Net weight | Indoor | kg | 7.7 |
| lbs | 16.98 | ||
| Outdoor without pipe | kg | 22.5 | |
| lbs | 49.6035 | ||
| Indoor Packing dimensions (W x D x H) | mm | 840×315×260 | |
| inch | 33.07×12.4×10.23 | ||
| Outdoor Packing dimensions (W x D x H) (without pipe) |
mm | 818×325×515 | |
| inch | 32.20×12.80×20.27 | ||
| Outdoor Packing dimensions (W x D x H) (with pipe) |
mm | 838x338x550 | |
| inch | 33.00×13.31×21.65 | ||
| Gross weight (without pipe) | Indoor | kg | 9.5 |
| lbs | 20.9437 | ||
| Outdoor | kg | 24 | |
| lbs | 52.9104 | ||
| Gross weight (with 5m pipe) | Outdoor | kg | 25 |
| Outdoor | Ibs | 55.115 | |
| Loading Capacity (IN+OUT) | 40’HC (without pipe) | 320 | |
| Loading Capacity (IN+OUT) | 40’HC (with pipe) | 288 | |
| Loading Capacity (IN+OUT) | 40’HC (with super package with pipe) | 360 | |
| Loading Capacity (INOOR) | 40’HC/ 40’GP/ 20’GP | 930/800/380 | |
| Loading Capacity (OUT) | 40’HC/ 40’GP/ 20’GP(without pipe) | 490/400/196 | |
| Loading Capacity (OUT) | 40’HC/ 40’GP/ 20’GP(with pipe) | 360/358/167 | |
| Loading Capacity (OUT) | 40’HC (with super package with pipe) | 360 | |
| Factory Precharge Line | (m/ft) | 7.5 / 25 | |
| Maximum Line Length | (m/ft) | 15 / 50 | |
| Maximum Height Difference Between Indoor and Outdoor | (m/ft) | 10 / 33 | |
| Additional refrigerant charge | (g/m, oz/ft) | 10 / 0.11 | |
| Operation temperature | ℃ | 16~31 | |
| Ambinet temperature | Indoor(cooling/ heating) | ℃ | >=17/<=30 |
| Outdoor(cooling/heating) | ℃ | 12~50/-15~30 | |
| Ambinet temperature | Indoor(cooling/ heating) | F | >=62/<=86 |
| Outdoor(cooling/heating) | F | 53.6~122/5~86 | |
| Stacking layers | Indoor | pieces | 7 |
| Outdoor | pieces | 6 | |
